Reverse engineering

The reverse engineering operation builds relationship diagram on the basis of the current database's structure. The objects are arranged automatically within the diagram model.

To start the reverse engineering process, click the Reverse Engineer button on the main toolbar, or use the corresponding item of the context menu.

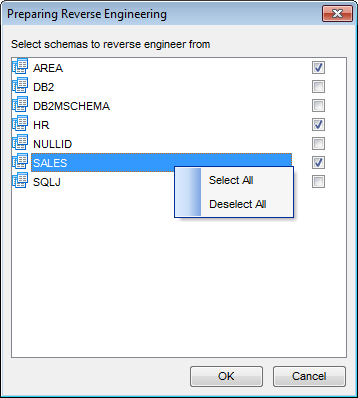

The Preparing Reverse Engineering dialog allows you to select schemas containing objects to reverse engineer.

For your convenience the Select All and Deselect All items are available in the context menu of the schemas list.
