Properties


Use the Properties tab of the Data Type Editor to create/edit a data type and specify its properties.



Name

Enter a name for the new data type. Note that data type names must comply with the rules for identifiers and must be unique within the schema.

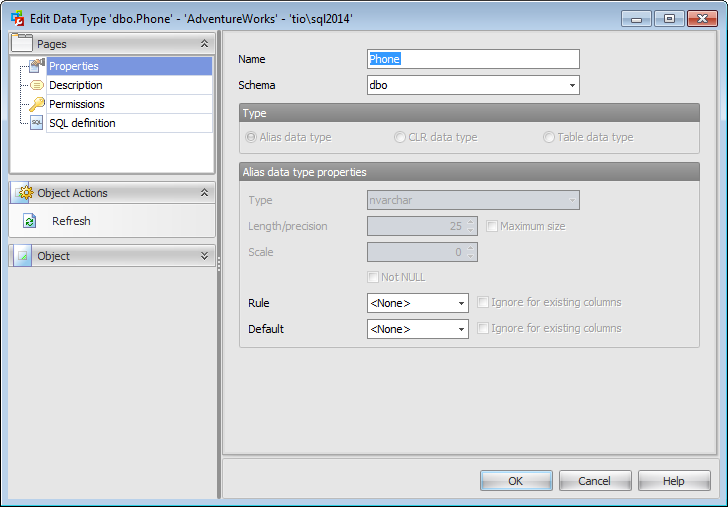

Data Type Editor - Properties





Schema

Use the drop-down list to select the schema which the data type belongs to. The default selection is the default schema for the current user.



Type

On creating a new user-defined type, you should first specify its implementation kind.



!RadioButton Alias data type

This selection specifies that an alias data type will be created on the basis of an existing SQL Server data type.



!RadioButton CLR data type

This selection specifies that the user-defined will be taken from an assembly.



!RadioButton Table data type

This selection specifies that a new user-defined table type will be created.



Alias data type properties

Type

Use the drop-down list to select SQL Server supplied data type on which the alias data type is based (base_type). The base type of an existing Data Type is not editable.



Length/precision

Specify the size value (for certain types). Check !CheckBox Maximum size to use the maximum values set by SQL Server.



Scale

Defines the maximum number of decimal digits that can be stored to the right of the decimal point of the value (for numeric and decimal data types).



!CheckBox Not Null

Specify whether the Data Type can accept NULL values. The nullability of an existing Data Type is not editable.



Rule

Use the drop-down list to select a rule to bind to the user-defined data type (optional). Check !CheckBox Ignore for existing columns to apply the selected rule only to newly added columns.



Default

Use the drop-down list to select a default to bind to the user-defined data type (optional). Check !CheckBox Ignore for existing columns to apply the selected default only to newly added columns.



CLR Data Type



Data Type Editor - Properties - CLR Data Type





Assembly

Use the drop-down list to select the SQL Server assembly that references the implementation of the Data Type in the common language runtime (CLR). The assembly must have been already created in the database.



Class name

Specifies the class within the assembly that implements the Data Type. The class name can be a namespace-qualified name (if the programming language that is used to write the class uses the concept of namespaces, such as C#).



Table Data Type



Data Type Editor - Properties - Table Data Type





Fields

This area lists the columns of the Data Type as a grid.

Double-click a field to open Field Editor for editing the field.

Right-click within the Fields area to display the context menu allowing you to add new, insert, edit using Field Editor, delete the selected field, or move it up/down within the list.



The Fields list provides the following attributes of each field of the Data Type:

Name

Data Type

Not Null

Identity

Default Value

Description
