MS Excel

Table

Select the sheet for importing data from.

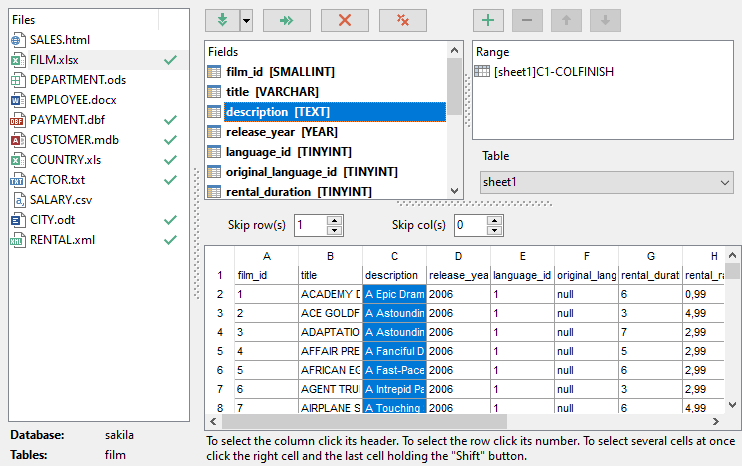

Select the needed source file from the list. Then specify ranges in the grid for the target and source fields:

• select a field of the target Oracle table in the Fields list;
• proceed to the sheet grid: click a column to assign the column to the selected target table field;
• the selected column of the source file gets gray highlight;
• repeat the operation for all the fields you need to be included in the import process.

If the source file and the destination Oracle table have the same order of columns, you can use the Auto Fill Columns mode (default) to set correspondence between them automatically. If source file and destination Oracle table have different order of columns but identical names you can use the Auto Fill by Captions mode to set the correspondence based on name's identity.

Note: The number of the column for which correspondence was set is displayed at the Col. control. You can use it for setting the fields correspondence as well.

If new table creation was selected at the previous step, then fields needed for the import procedure will be created automatically.

You can manage destination table fields if needed. Use the corresponded context menu item to New/Edit/Drop field.

If necessary, you can choose to skip a defined number of the source file rows or columns using the Skip lines or Skip cols spin-edit.

Note: If table was properly created or already exists, it will be marked with a tick . If an error occurs during table creation, this table will be marked with a cross .

To remove a correspondence, select the field in the Fields list and press the Clear Field Ranges button.

To remove all correspondences, press the Clear All Ranges button.

If your spreadsheet file contains several sheets, you are able to set different mapping for each sheet.

To clear ranges for a field, select the field in the Fields list and press the Clear button.

To clear all ranges specified for the target table fields, press the Clear All button.

To set a range of data to be imported from the file, use the Add range button.

To remove a range, use the Delete range button.

Using the Move Up and the Move Down buttons you can change the order of ranges applied to data.

Click the Next button to proceed to the Setting base data formats step of the wizard.
