Online Documentation for SQL Manager for PostgreSQL

Adding report data


Adding bands



In order to add a band to the report:

  • proceed to the Page1 tab of Report Designer;
  • pick the Insert Band iconFastReport_InsertBand component on the toolbar (on the left);
  • select the band to be added to the report;
  • click within the working area - the corresponding element appears in the area;
  • set element properties within the Properties Inspector.

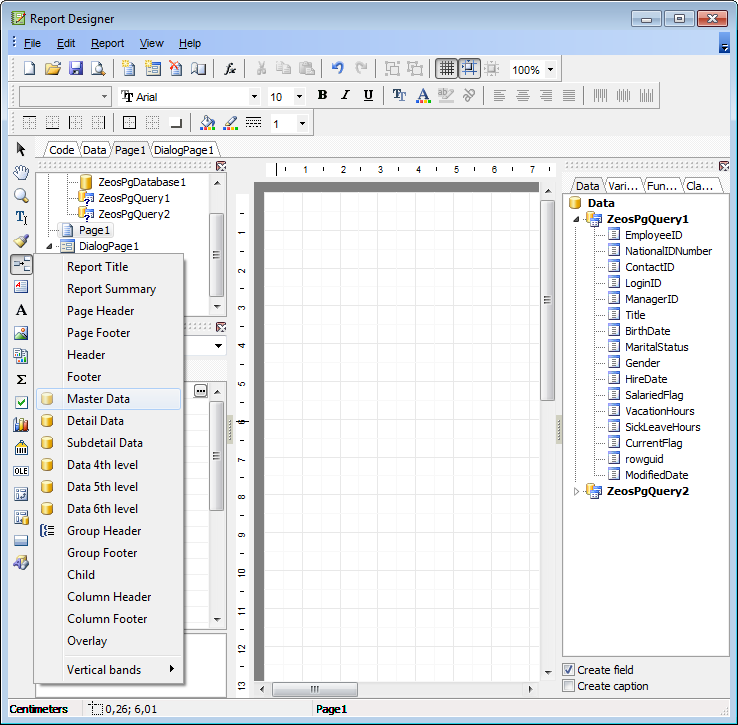

Report Designer - Adding bands





Adding report data



In order to add data to the report:

  • proceed to the Data tab within the panel on the right side of the window;
  • pick a column within the iconFastReport_Data Data tree and drag it to the working area;
  • add all necessary elements one by one using drag-and-drop operation for each of them.



Report Designer - Adding report data





Note: The Properties Inspector panel which allows you to edit report object properties can be shown/hidden by pressing the F11 key.
